What Are the 7 Key Concepts of SD-WAN?

Working across SD WAN services, you’d think we’re in a world where networking issues simply do not exist. I’m expecting to read that Einstein was simply wrong about the laws of physics because the latest Software-defined WAN capability has broken the speed of light.

Perhaps we’ll be at the stage where WAN optimisation knows the data you’re about to generate before you’ve even thought about pressing send? In short, the sarcasm above really does demonstrate the advances we are all experiencing across end to end data delivery from the LAN and WAN through to Data Centre and Security. We do need to remain grounded when considering SD WAN benefits; networking performance remains fundamentally attached to latency and jitter. With this said, significant advances are regularly occurring, which offer the average Enterprise business the ability to leverage the Internet with consistent networking performance. As providers and vendors continue to innovate, The Network Union is working hard to keep our research up to date and relevant to help the decision-making process of Global IT teams.

In this article, we’ll discuss 7 SD WAN concepts to help readers clearly understand where some of the main benefits exist and how they are positively impacting telecoms innovation.

Overlay Abstraction

Overlay abstraction is the process of creating a virtual network layer that sits on top of physical transport circuits. This separation allows the control plane to manage traffic independently of the underlying hardware or service provider. By using tunnels to encapsulate data, the SD-WAN creates a consistent fabric across diverse connection types.

In practice, this means that the intelligence of the network no longer resides solely at the WAN edge device. Traditional routed legacy networks often remained static because the routing control function was tied to the individual edge device. Abstracting this layer allows for a more fluid architecture where changes to the network logic do not require physical reconfiguration of the circuits.

For the network architect, this concept provides the freedom to design a network based on performance requirements rather than carrier constraints. It allows for the virtualisation of network functions, moving away from dedicated, proprietary hardware toward a more automated environment. This transition ensures that the network remains adaptable as business requirements evolve.

Centralised Orchestration

Centralised orchestration provides a single point of management for the entire SD-WAN environment. Instead of configuring routers individually via a command line interface, administrators use a graphical user interface to push policies across all sites simultaneously. This shift from manual, box-by-box management to a software-defined approach is a fundamental change in how networks are maintained.

The underlying mechanism relies on a central controller that communicates with every edge device in the fabric. When a security policy or routing rule is updated in the orchestrator, it is automatically distributed to all relevant nodes. This reduces the risk of human error and ensures that configuration remains consistent across the global estate.

This concept is particularly important for managing the growing number of devices on the network. With reports suggesting that individual engineers may be responsible for hundreds of devices, the ability to apply policies from a central location is a necessity. It simplifies day to day operations and allows IT teams to focus on strategy rather than repetitive maintenance tasks.

Application-Aware Routing

Application-aware routing is the capability of the network to identify specific applications and direct them over the most appropriate path. Unlike traditional routing that makes decisions based on IP addresses, SD-WAN looks at the actual payload to distinguish between different types of traffic. This allows the system to treat a video call differently than a background file download.

The system monitors the real-time performance of available paths, measuring metrics such as latency, jitter, and packet loss. If a primary circuit experiences degradation, the SD-WAN can automatically steer sensitive applications to a more stable connection. Features like Forward Error Correction and packet duplication further ensure that mission-critical data remains intact even over lossy internet links.

For IT managers, this ensures that expensive, high-quality circuits like MPLS are reserved for the most important traffic. Less critical data can be routed over lower-cost broadband without impacting the user experience. This intelligent steering provides a level of performance over the public internet that was previously only available through private leased lines.

Zero-Touch Provisioning

Zero-touch provisioning, or ZTP, automates the deployment of network hardware at remote locations. When a new SD-WAN appliance is delivered to a site, it only requires power and an internet connection to begin its setup. The device automatically connects to the central orchestrator to download its specific configuration and security policies.

This process removes the need for specialised network engineers to travel to branch offices for basic installations. Once the device is plugged in, it identifies itself to the network and joins the SD-WAN fabric. This plug and play approach significantly accelerates the speed at which new offices or retail locations can be brought online.

The primary benefit is the reduction in deployment costs and logistical complexity. Large-scale rollouts that previously took months can now be completed in weeks. While technical expertise is still required for the initial design and policy creation, the physical rollout becomes a repeatable, simplified task that can be handled by non-technical staff on-site.

Transport Independence

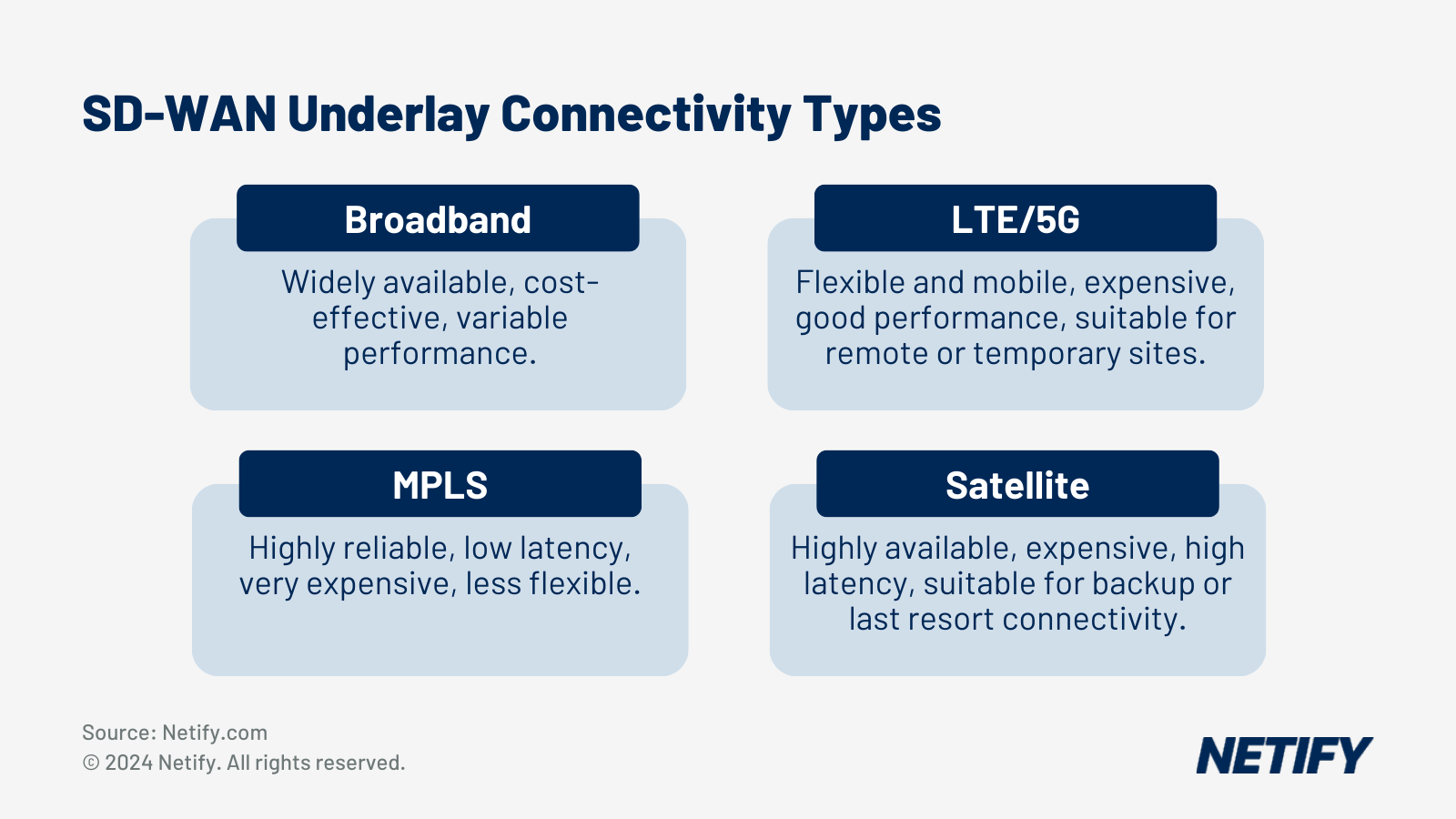

Transport independence allows an SD-WAN to operate across any type of data connection, including fibre broadband, MPLS, 4G/5G, and satellite. The network software treats these diverse circuits as a pool of available bandwidth. This flexibility means a business is no longer tied to a single carrier or a specific type of connectivity at every location.

In practice, this enables a hybrid networking approach where multiple circuit types are used simultaneously. An office might use a combination of a reliable MPLS circuit and a high-bandwidth broadband connection. The SD-WAN aggregates these links, increasing the total available bandwidth and providing instant failover if one circuit fails.

This concept is vital for global businesses operating in regions where MPLS costs remain high. In the US, the cost difference between MPLS and internet circuits is significant; the gap in the UK is often narrower. Regardless of the price point, transport independence ensures that the business can use the best available local connectivity without compromising network integrity.

Service Chaining

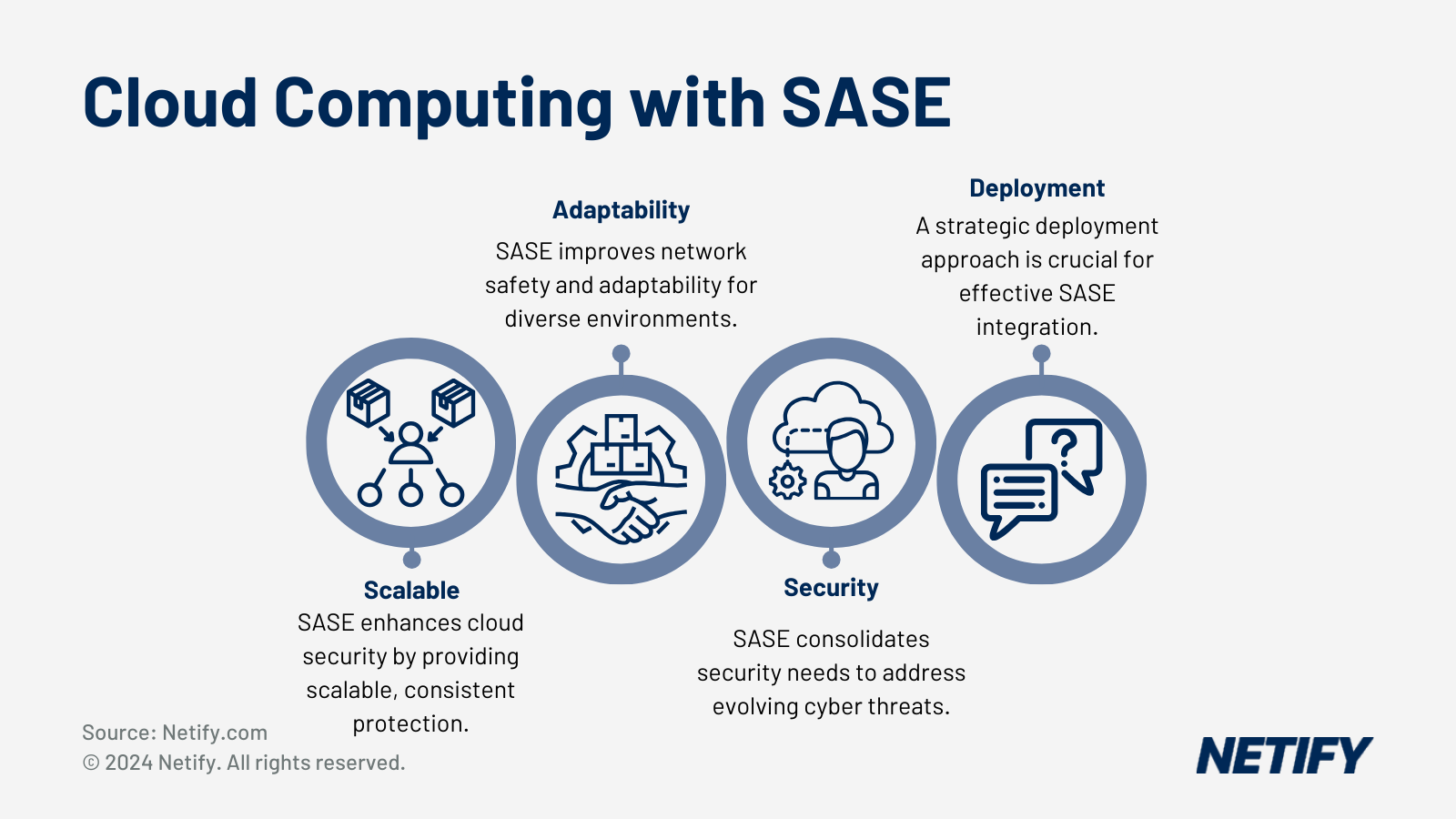

Service chaining is the automated process of directing traffic through a specific sequence of network services, such as firewalls, intrusion prevention systems, or load balancers. In an SD-WAN environment, these services can be virtualised and inserted into the traffic path without changing the physical cabling. This is a core component of SASE (Secure Access Service Edge) architectures.

Technically, this is achieved through Network Function Virtualisation. Several virtual functions can run on a single device while remaining isolated from one another. This allows an IT team to quickly deploy new security services to a branch office by simply updating the service chain in the central orchestrator.

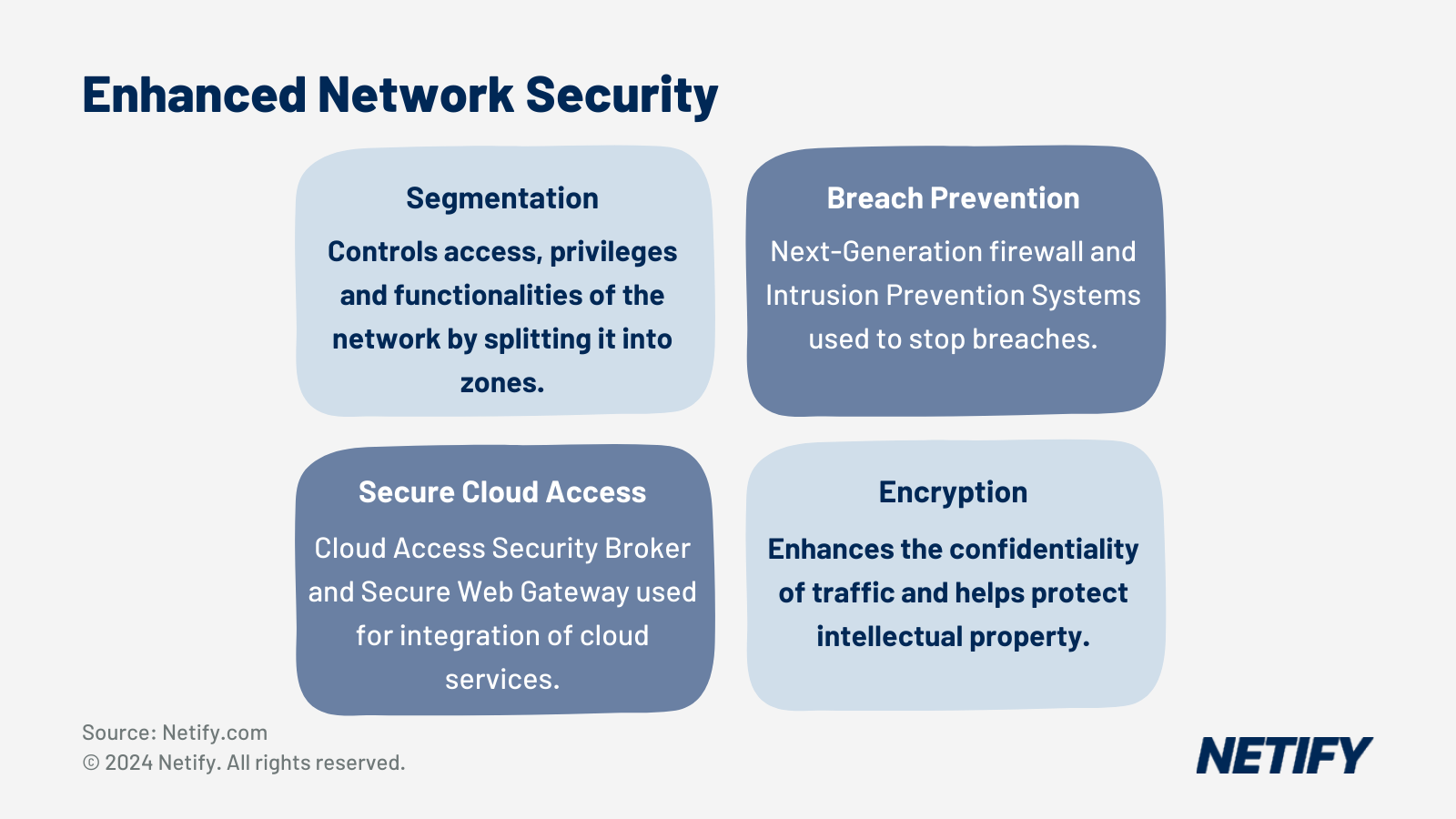

The advantage for network architects is the ability to consolidate multiple hardware boxes into a single appliance. It reduces the branch office sprawl of stacked hardware and simplifies the security stack. By integrating next-generation firewall capabilities directly into the WAN, security becomes a consistent, policy-driven component of the network rather than an afterthought.

Multi-Tenancy

Multi-tenancy is a software architecture where a single instance of an SD-WAN platform serves multiple distinct groups or tenants. Each tenant has its own private, isolated environment with its own configurations, policies, and data.

This is a critical requirement for Managed Service Providers who need to manage hundreds of different customers from a single management plane. It ensures that one customer cannot see or interfere with the traffic or settings of another. Even within a single large enterprise, multi-tenancy can be used to separate different business units or international subsidiaries for regulatory or security reasons.

For the IT decision-maker, multi-tenancy provides the scalability needed for complex organisational structures. It allows for delegated administration, where local IT teams can manage their own segments while a central team maintains over-arching control. This balance of centralisation and autonomy is essential for modern, distributed enterprises and service providers.

Conclusion

The seven concepts of SD-WAN provide a framework for modernising enterprise connectivity through centralised control, transport flexibility, application intelligence, and integrated security. These elements work together to address the performance and management challenges inherent in traditional hardware-based networks. In most real-world deployments, these concepts do not operate in isolation; SD-WAN typically combines several of them within a single platform to meet specific business requirements.
